Density

Examples of using the Density entity API

The Density entity can be used to load density grids into Blender. It uses MDAnalysis GridDataFormats library and supports a wide variety of formats.

Setup Molecular Nodes

import molecularnodes as mn

# create a canvas object
canvas = mn.Canvas()

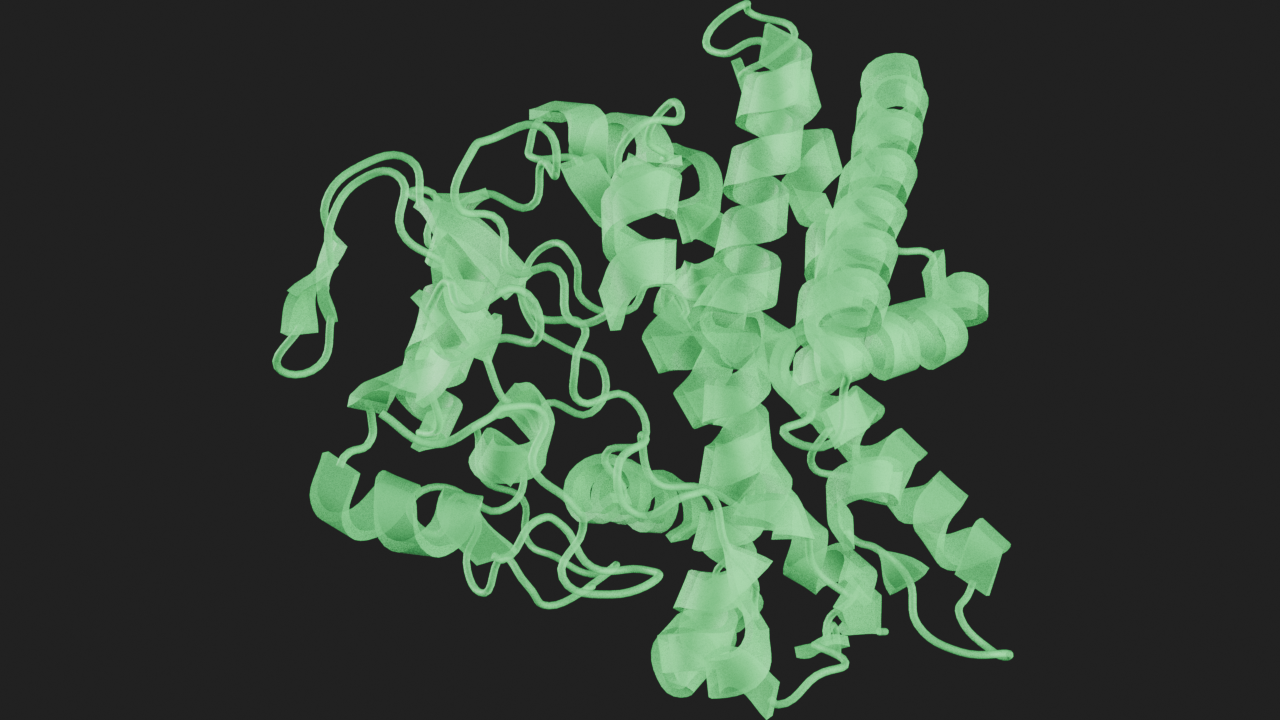

Add 1EHE Molecule

# fetch 1EHE and add cartoon style with uniform color and transparency
mol = mn.Molecule.fetch("1EHE").add_style("cartoon", color=(0.2, 1.0, 0.3, 0.5))
# frame molecule and render
canvas.frame_object(mol)
canvas.snapshot()

Add APBS density example

from pathlib import Path

apbs_sample = Path("../../") / "tests/data/apbs.dx.gz"

# load density file
d = mn.entities.density.io.load(
    file_path=apbs_sample,
    style="density_iso_surface",
    overwrite=True,
)

Set ISO Value

# get the density style
ds = d.styles[0]
# set iso value
ds.iso_value = 1

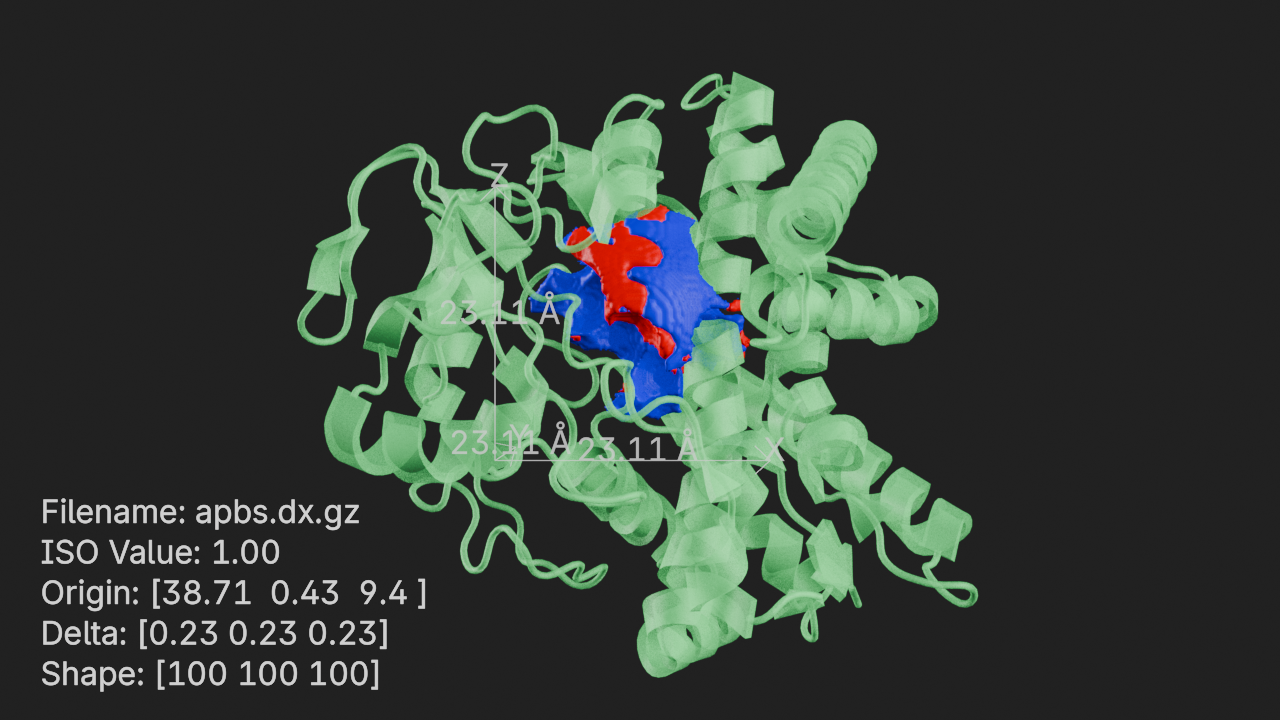

Show Density Grid and Info

# add density grid annotation
dg = d.annotations.add_grid_axes()
# add density info annotation
di = d.annotations.add_density_info()
# frame molecule and render
canvas.frame_view(mol.get_view(), viewpoint="front")
canvas.snapshot()

# hide density grid and info
dg.visible = di.visible = False

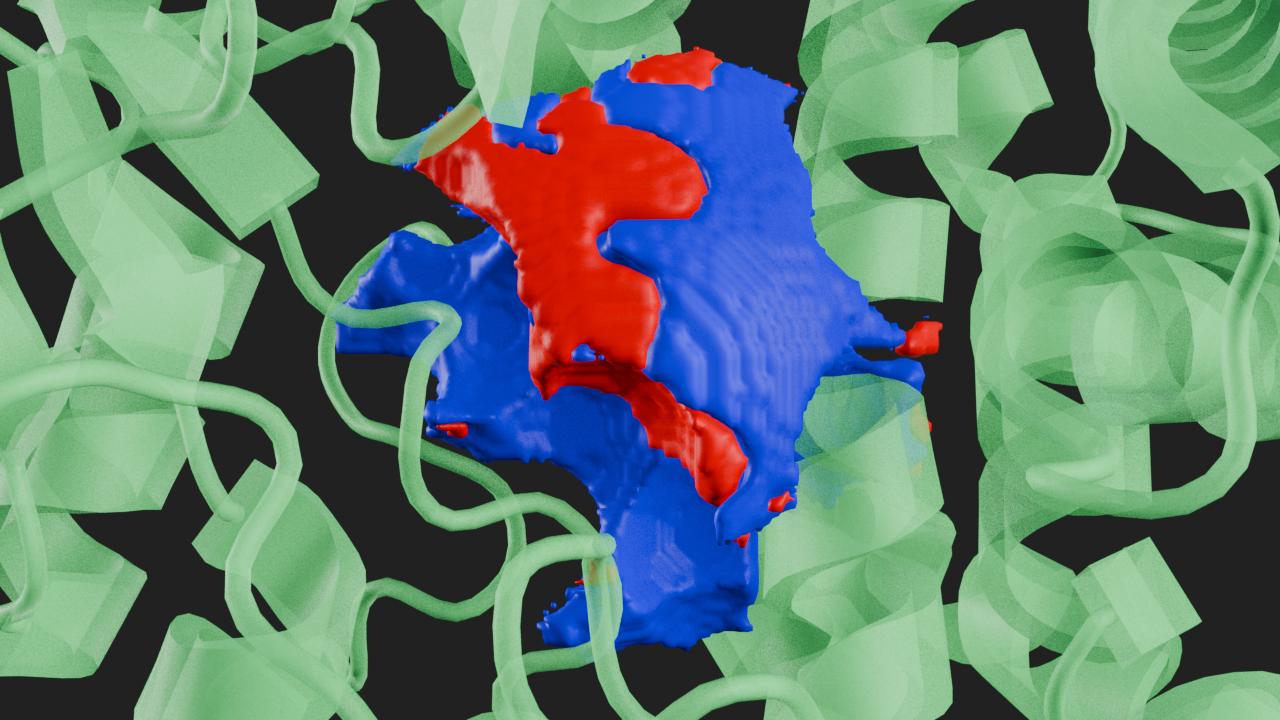

Density View

# frame density and render
canvas.frame_view(d.get_view(), viewpoint="front")
canvas.snapshot()

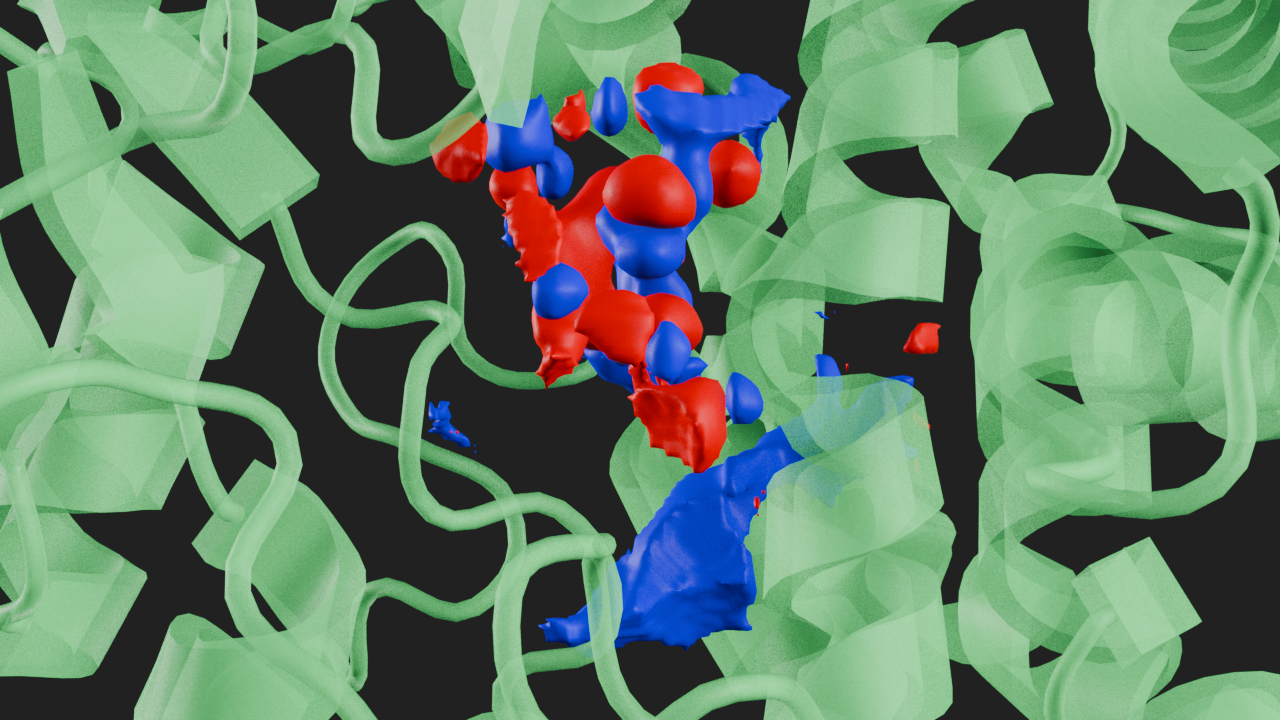

ISO Value = 25

# set iso value
ds.iso_value = 25
# frame density and render
canvas.frame_view(d.get_view(), viewpoint="front")
canvas.snapshot()

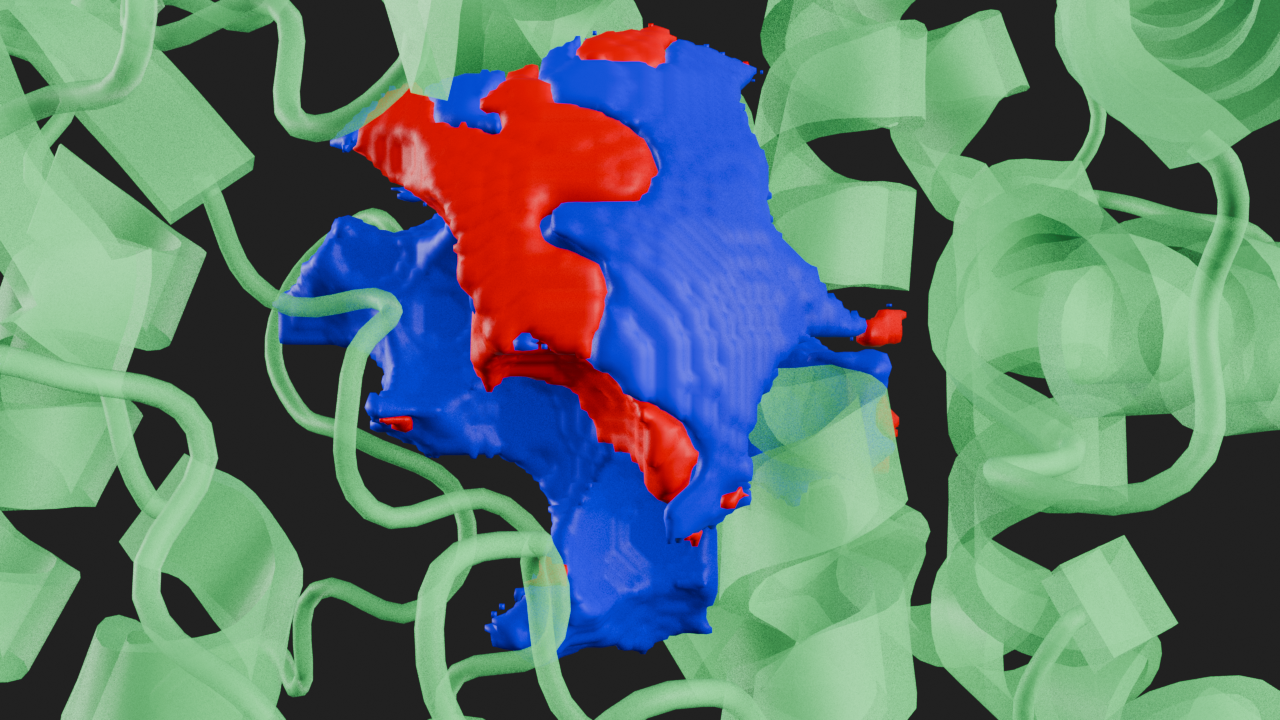

Contours

# reset ISO value to 1
ds.iso_value = 1
# enable contours
ds.show_contours = True
# set contour thickness
ds.contour_thickness = 0.1
ds.contour_color = (1.0, 1.0, 1.0, 0.5)
# use ds.only_contours to only show contours
# frame density and render
canvas.frame_view(d.get_view(), viewpoint="front")
canvas.snapshot()

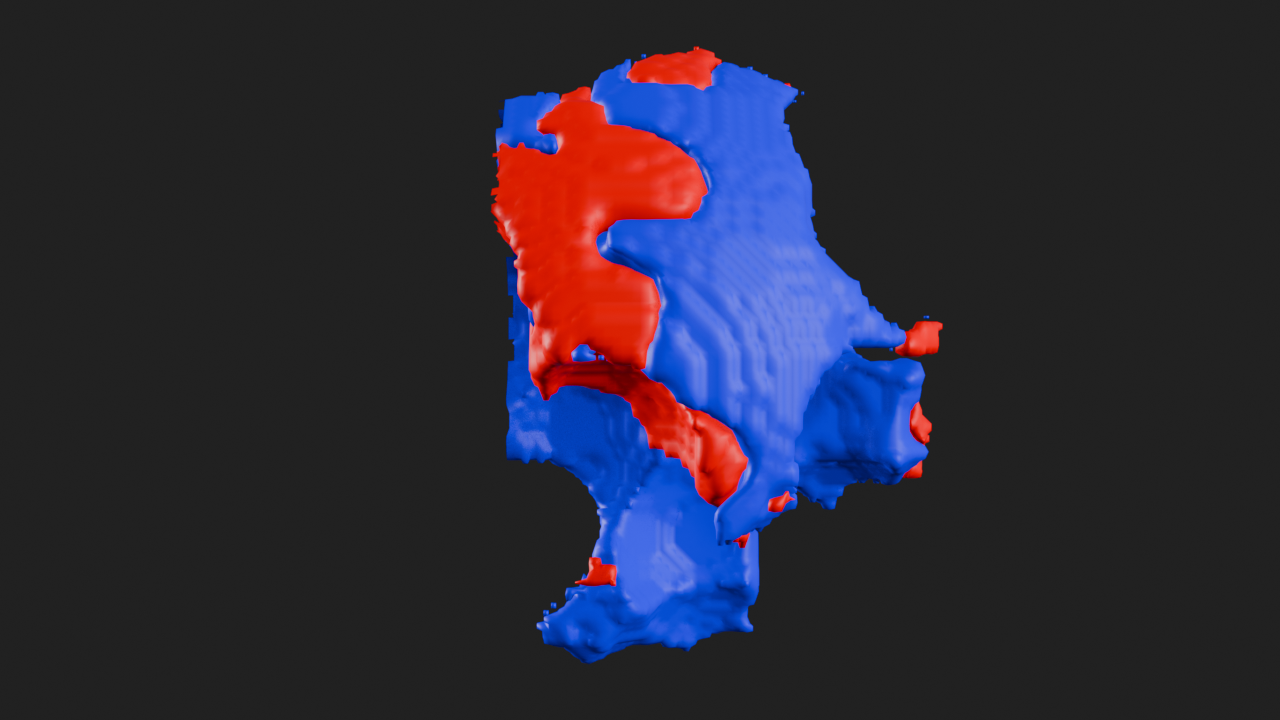

Slicing

Density grids can be sliced from left, right, front, back, top and bottom as a percentage of the grid width along that direction.

# remove molecule style
mol.styles[0].remove()
# slice the grid from the left 35%
ds.slice_left = 35
# frame density and render
canvas.frame_view(d.get_view(), viewpoint="front")
canvas.snapshot()

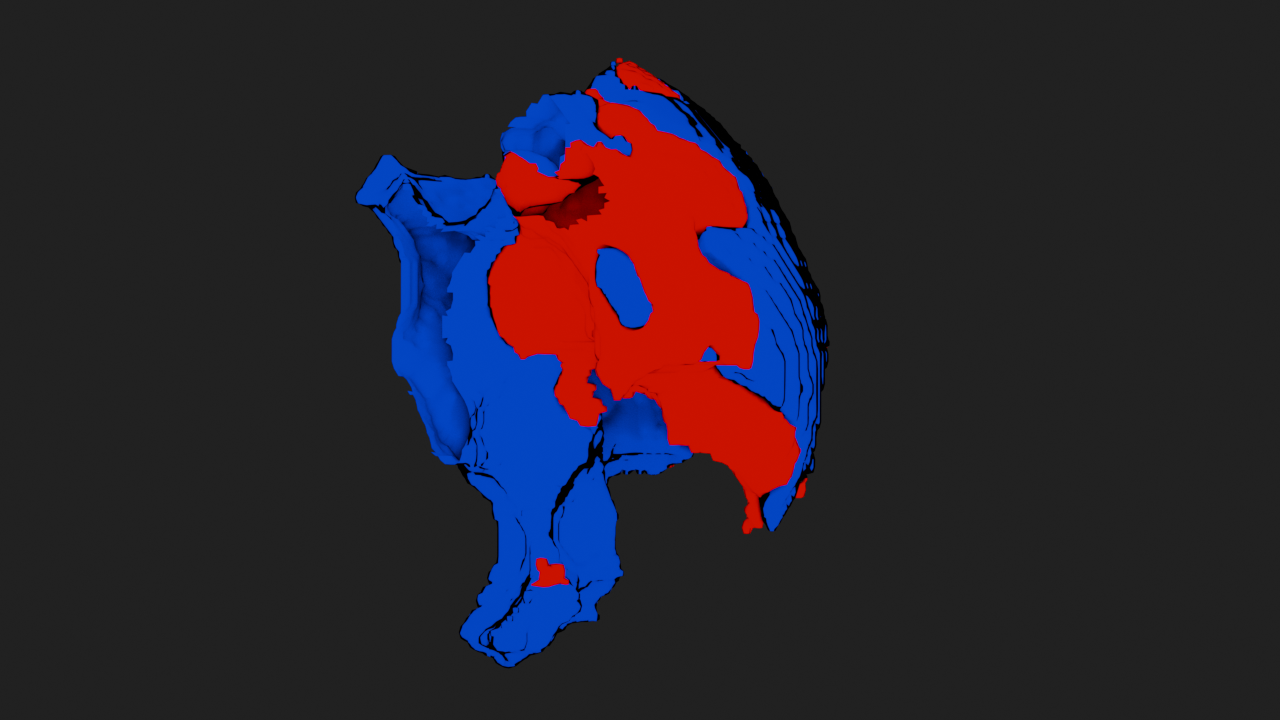

Rotated View

# rotate camera 45 degress to left from front view
canvas.camera.rotation = (90, 0, -45)
# frame density and render
canvas.frame_view(d.get_view())
canvas.snapshot()

Material

# disable contours
ds.show_contours = False
# set material
ds.material = "MN Flat Outline"
# frame density and render
canvas.frame_view(d.get_view())
canvas.snapshot()

Colors

# set color for positive ISO values
ds.positive_color = (0.7, 1.0, 0.7, 1.0)
# set color for negative ISO values
ds.negative_color = (0.7, 0.0, 1.0, 1.0)
# frame density and render
canvas.frame_view(d.get_view())
canvas.snapshot()

Annotations

The bundled annotation types for Densities are:

  • density_info - For info about the density grid
  • grid_axes - For displaying the grid axes
  • label_2d - For adding a generic 2d label in viewport / render
  • label_3d - For adding a generic 3d label

density_info

Display the density grid info.

The input parameters for this annotation are:

  • location - Normalized 2d location (0.0 - 1.0) to show the info wrt viewport / render
  • show_filename - Whether to display the grid filename
  • show_threshold - Whether to display the ISO value
  • show_origin - Whether to display the origin coordinates of the grid
  • show_delta - Whether to display the grid lengths along the axes
  • show_shape - Whether to display the grid size along the axes

grid_axes

Display the grid axes.

The input parameters for this annotation are:

  • show_length - Whether to show the length of each axis
  • units - The units to display for the axis length

label_2d

Display a generic 2d label in the viewport / render.

The input parameters for this annotation are:

  • text - Text to display
  • location - Normalized location (0.0 - 1.0) to show the text wrt viewport / render

label_3d

Display a generic 3d label on the density grid.

The input parameters for this annotation are:

  • text - Text to display
  • location - 3d coordinates in grid to display text

Custom Annotations

A custom density annotation class has to extend DensityAnnotation and implement the draw method. Optional defaults method can be used to set defaults for the annotation and a validate method that can validate inputs when they change can be implemented. The custom class will have access to the density entity via self.density, the density grid object (Grid) via self.density.grid and the annotation params via self.interface. Please see the Annotations API for all the methods available to draw onto the viewport / renders from the draw code.
